In modern energy and industrial systems, the quality of enameled wire determines the efficiency and reliability of equipment. Especially in systems that require high loads and large power capacity, not ordinary wire is used, but rectangular copper enameled wire (rectangular winding wire). FENITEC offers rectangular copper enameled wire PETP types — a professional solution that ensures maximum efficiency for transformers, generators, and electrical machines.
What is rectangular enameled wire?
Rectangular copper enameled wire is a winding wire with a rectangular cross-section coated with special insulation.
Main differences from ordinary round wire:
higher winding density
higher efficiency
better heat dissipation
That is why it is widely used in large transformers and industrial equipment.

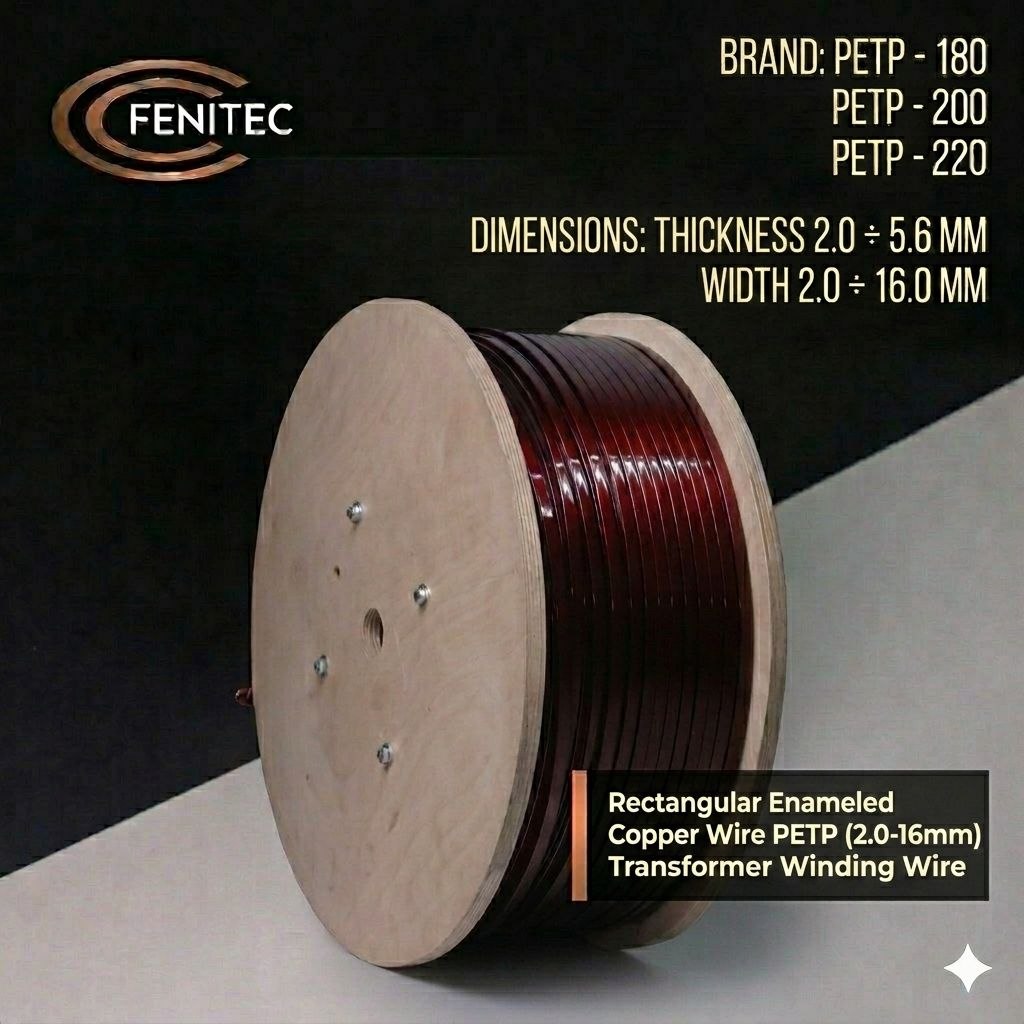

FENITEC PETP enameled wires — technical specifications
FENITEC manufactured PETP enameled wires stand out with the following parameters:
Main parameters:
Type: PETP-180, PETP-200, PETP-220
Material: high-purity copper
Thickness: 2.0 mm – 5.6 mm
Width: 2.0 mm – 16.0 mm
Insulation: heat-resistant enamel
Temperature characteristics:
| Type | Operating Temperature | Heat Shock (30 min) |
|---|---|---|
| PETP-180 | 180°C | 200°C |
| PETP-200 | 200°C | 220°C |
| PETP-220 | 220°C | 240°C |
Electrical characteristics:
Breakdown voltage: > 2000 V
High conductivity
Minimal energy loss
Standards:
IEC 60317-28
IEC 60317-29
IEC 60317-58
Fully compliant with international standards.
Advantages of rectangular enameled wire
FENITEC PETP wires have the following advantages:
high winding density — maximum use of space
high conductivity — reduced energy loss
effective heat dissipation
mechanical and chemical resistance
long service life
These properties make it an ideal choice for high-power transformers.
Round wire and rectangular wire — the difference
| Parameter | Round Wire | Rectangular Wire |
|---|---|---|
| Winding Density | low | high |
| Efficiency | medium | high |
| Application | standard systems | industrial systems |
For high-load systems, rectangular enameled wire is the most efficient solution.
Application areas
FENITEC rectangular copper enameled wires are used in the following areas:
transformers (dry-type and oil-filled)
generators
high-power electrical machines
inductors and industrial equipment
Suitable for systems operating from 180°C to 220°C.
What affects the price of rectangular enameled wire?
Frequently searched phrase: rectangular enameled wire price in Tashkent.
The price depends on:
wire size (thickness and width)
type (PETP-180 / 200 / 220)
order volume
delivery conditions
Wholesale orders offer more competitive pricing.
Why FENITEC?
FENITEC as an enameled wire manufacturer offers:
modern production technology
strict quality control
products compliant with international standards
fast and stable delivery
Every product is tested and meets industrial requirements.
Conclusion
If you need rectangular copper enameled wire, transformer wire, or the most efficient industrial solution — FENITEC is the right choice. High efficiency, long service life, and reliable quality — all in one place.
Contact us today and get the price for rectangular enameled wire. Our specialists will recommend the best solution for your needs.
